Rotary Kiln Support Roller

Rotary Kiln Support Roller

As a large-scale, high-temperature calcination device, the rotary kiln features a shell that is supported on a foundation by multiple sets of support rollers and driven by a transmission mechanism to rotate slowly around its central axis. So the rotary kiln support rollers serve as critical load-bearing and transmission components for rotary kiln equipment across industries such as metallurgy, building materials, and chemicals. Their primary function is to support the kiln shell and facilitate its smooth rotation.
BOPENG offers high-quality casting rotary kiln support rollers made from high-quality steel casting materials and with precision engineering, ensuring robustness, durability, and long service life. Our kiln support rollers can withstand the extreme conditions in rotary kiln operations, including high temperatures, heavy loads, and continuous rotation.

contact us Get a Solution

Technical Specifications

Parameter

Description

Material

ZG35CrMo, ZG42CrMo, and other customized material

Diameter

Customizable (Typical range: 500mm – 2000mm)

Length

Customizable (Typical range: 1000mm – 5000mm)

Load Capacity

10-100 tons (depending on kiln size and design)

Temperature Resistance

Up to 600°C

Surface Hardness

45-55 HRC (depending on material)

Bearing Type

0.5-2 RPM (depending on the kiln design)

Rotation Speed

Painting, plating, polishing, transparent anti-rust oil

Heat Treatment

Annealing/Normalizing/Quenching/Tempering

Structure and Working Principle

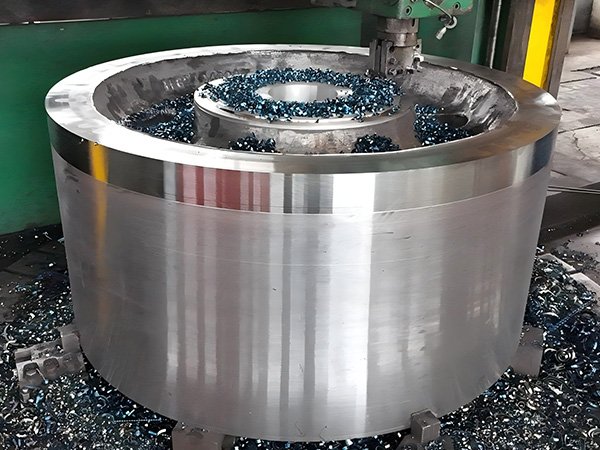

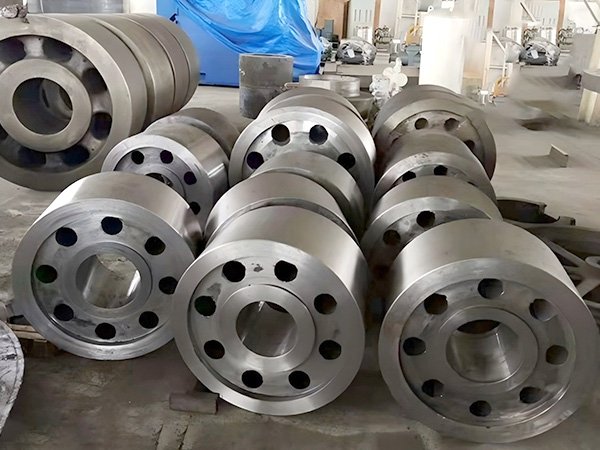

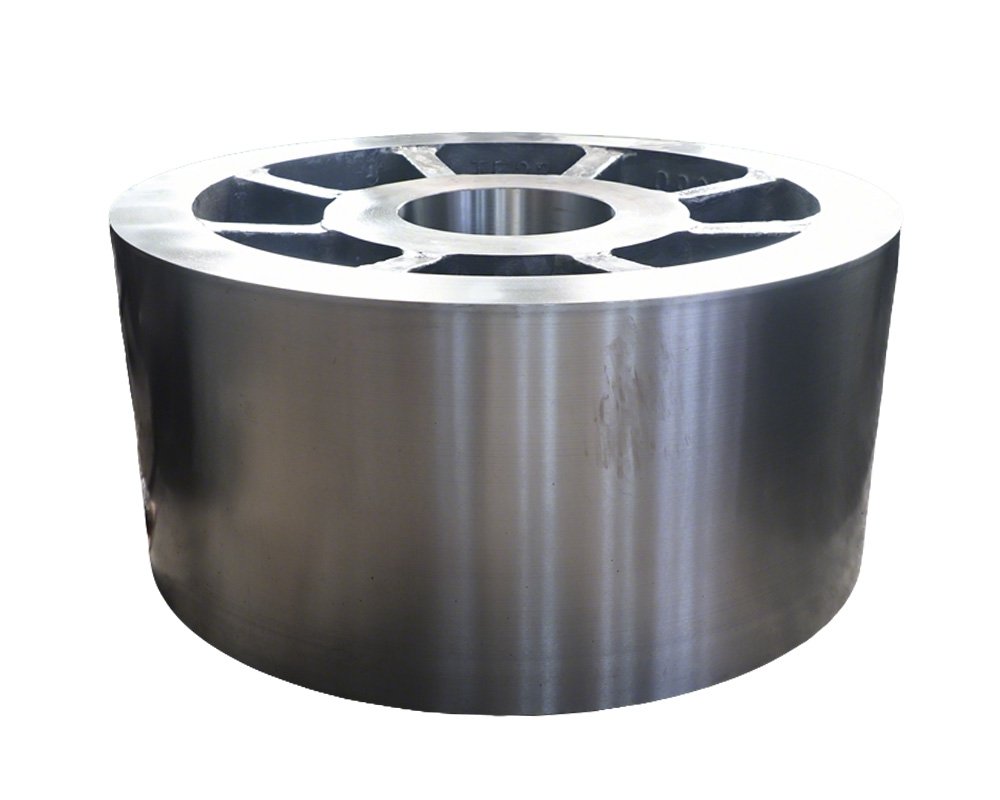

A rotary kiln support roller system typically consists of support rollers, support roller shafts, bearing chocks, and base plates. The support rollers themselves are large cast or forged steel components that mounted on the support roller shafts via bearings, they are arranged in pairs to support the kiln’s riding rings.
During operation, the support rollers rotate under the drive of a transmission mechanism, they drive the kiln tyre on the kiln body through frictional force, thereby enabling the massive kiln shell to rotate at a uniform speed. As the kiln rotates, the weight of the kiln shell and its contents is evenly distributed onto the support rollers. This ensures that the kiln rotates smoothly and maintains its alignment, preventing undue strain on other components of the kiln system. BOPENG casting support roller requires careful consideration of load-bearing capacity, friction coefficients, thermal expansion, and durability under harsh operating conditions of the rotary kiln system.

Key Features of BOPENG Rotary Kiln Support Roller

Enhanced Durability

BOPENG large girth gears are manufactured from high standard steel materials and through different kinds of heat treatment process. Making sure the finished girth gear products have exceptional wear and corrosion resistance, extending the lifespan of the equipment.

Precision Engineering and Inspection

From mold making and casting to polishing, BOPENG employs advanced and precise manufacturing processes that meet industry standards to ensure that each gear is manufactured with high precision. All cast steel products of BOPENG will be undergo multiple quality inspections before leaving the factory.

Heavy-Duty Performance

BOPENG rotary kiln gear rings are typically design for heavy-duty conditions, especially suitable for high-load and high-torque applications, making them an ideal choice for your rotary kiln.

Customizable Solutions

BOPENG support fully customized kiln girth gear based on customer’s unique requirements to fit different kinds of rotary kiln perfectly. And our cast girth gear provide long-term performance with minimal maintenance, offering a cost-effective solution for your rotary kiln operations.

Quality Control and Testing

At BOPENG, quality control is a priority. We ensure that each rotary kiln support roller undergoes the following tests and checks: Material Testing: To ensure the materials used meet industry standards for strength, hardness, and wear resistance. Dimensional Inspection: Ensuring the rollers meet exact size specifications for proper fit and function. Rotational Test: Verifying that the rollers rotate smoothly under load without excessive wear or friction. Surface Finish: Ensuring the surface hardness and finish meet the required standards for long-term durability. Load Testing: Simulating real-world operational conditions to check the rollers’ load-bearing capacity.
One-stop Custom Castings

Why choose BOPENG?

Get a Solution

20 Years of Professional Steel Casting Manufacturing Strength

BOPENG possesses 20 years of experience in the production of cast steel spare parts, and continuously upgrading our manufacturing techniques and optimizing our service systems. We employ advanced manufacturing processes to produce large steel casting products that are high in strength, wear-resistant, and have a long service life. We have a team of experienced engineers who use the latest modeling software to design and manufacture the steel cast parts to your specifications.

Strict Full-Process Quality Assurance & ISO Certification

We consistently prioritize the procurement of high-quality steel raw materials, establishing close cooperative relationships with premium suppliers. Furthermore, we conduct a comprehensive series of compositional analyses on these materials to ensure they meet all requisite quality standards. Concurrently, our quality control measures are integrated throughout the entire production lifecycle—from mold making and casting to precision finishing—with dedicated quality inspectors overseeing product quality at every stage. BOPENG equipped with a diverse array of product testing instruments, and all our products have successfully obtained ISO quality system certification.

Round-the-Clock All-Round Service & Global Customer Partnerships

BOPENG offers 24/7 online consultation services. Our professional international trade team is dedicated to assisting you with any issues that may arise during the cross-border procurement process, while our technical team stands ready to help you resolve any challenges encountered during product design, installation, and operation. Relying on high-quality cast steel products and a comprehensive service system, BOPENG has earned widespread recognition from clients worldwide, establishing cooperative relationships with renowned enterprises such as Mesto, SMS, POSCO, and Lafarge.

BOPENG’s Solution for Cast Steel Products

BOPENG support fully customized large casting steel products in widely applications, including building material industry, metallurgical engineering, and mining industry. We supply one-stop solution from drawings to finished products.

more projects

FAQ

Use this space to provide your website visitors with a brief description of what to expect before clicking on a section title.

Steel casting and steel forging are two different manufacturing processes used to produce high-strength steel components, but they create different material structures and design advantages.
Steel forging forms metal through mechanical deformation under high pressure, which improves grain flow and is often selected for parts requiring extremely high fatigue resistance and directional strength. Steel casting, on the other hand, produces components by pouring molten steel into a precisely designed mold, allowing manufacturers to create complex geometries, large structures, and integrated components that would be difficult or impossible to manufacture through forging.
For many heavy industrial applications, steel casting provides significant advantages because it allows complex shapes, internal passages, thick sections, and customized designs while maintaining excellent strength, toughness, and wear resistance. This makes cast steel widely used for mining machinery, construction equipment, railway components, pump bodies, valve components, and power generation equipment.
The selection between casting and forging depends on factors such as component size, structural complexity, mechanical requirements, production volume, and operating environment. A professional steel casting manufacturer can help determine the most suitable process according to the actual application requirements.

Choosing the correct steel grade is one of the most important steps in designing a reliable steel casting component. The ideal material depends not only on strength requirements but also on the working environment, temperature, corrosion exposure, impact loads, and wear conditions.
Carbon steel castings are commonly selected for general industrial applications where good strength, machinability, and cost efficiency are required. Alloy steel castings are preferred for more demanding conditions because alloying elements such as chromium, nickel, molybdenum, and manganese can improve hardness, toughness, heat resistance, and wear performance.
For example, mining equipment components often require high impact resistance and abrasion resistance, while valve bodies and pump components used in energy or chemical industries may require corrosion resistance and high-temperature stability.
During material selection, engineers usually consider mechanical properties such as tensile strength, yield strength, elongation, hardness, impact toughness, and heat treatment requirements. A properly selected steel grade ensures that the casting performs reliably throughout its service life rather than simply meeting initial specifications.

Mining and heavy construction equipment operate under some of the most severe working conditions, including heavy impact, continuous vibration, abrasive materials, and extreme loading cycles. These environments require components with exceptional strength and durability.
Steel castings are widely used in these industries because they provide an excellent balance of mechanical strength, impact resistance, and design flexibility. Components such as crusher parts, excavator components, structural brackets, machine frames, and wear-resistant parts can be manufactured with complex shapes while maintaining high load-bearing capability.
Compared with other materials, steel castings can be engineered with specific alloy compositions and heat treatments to achieve improved hardness, toughness, and fatigue resistance. This makes them suitable for equipment that must operate continuously in mines, quarries, and heavy industrial environments.
The ability to produce large and complex components is another important advantage of steel casting, especially for heavy machinery where welded assemblies may introduce additional stress concentration points.

Steel casting quality depends heavily on controlling the entire manufacturing process, from melting and mold preparation to pouring, solidification, and heat treatment.
Common casting defects may include shrinkage cavities, gas porosity, inclusions, cracks, and dimensional variations. These issues usually result from factors such as improper molten steel treatment, incorrect pouring temperature, poor feeding design, uncontrolled cooling rates, or inadequate process parameters.
Professional foundries use multiple methods to reduce casting defects, including chemical composition control, simulation-assisted mold design, riser optimization, advanced melting technology, and strict inspection procedures.
Quality verification may include visual inspection, dimensional measurement, ultrasonic testing, magnetic particle testing, radiographic testing, and mechanical property testing. These inspection methods help ensure that steel castings meet customer specifications and perform safely in demanding industrial applications.

Heat treatment plays a critical role in improving the mechanical properties and long-term reliability of steel castings.
After casting, the internal structure of steel may contain residual stress and uneven microstructures caused by the cooling process. Heat treatment processes such as normalizing, annealing, quenching, and tempering help refine the grain structure, relieve internal stress, and achieve the required combination of strength, hardness, and toughness.
For heavy-duty applications, heat-treated alloy steel castings can provide significantly improved resistance against impact loads, fatigue failure, and mechanical deformation. For example, components used in mining machinery, railway equipment, and industrial processing systems often rely on carefully controlled heat treatment to achieve stable performance under continuous operation.
The correct heat treatment process depends on the steel grade, casting size, wall thickness, and final application requirements.

Custom steel castings are used across many industries where components require high strength, durability, and complex geometries.
Major application areas include mining equipment, construction machinery, oil and gas systems, power generation equipment, railway transportation, marine engineering, industrial pumps and valves, and heavy manufacturing machinery.
In the mining sector, steel castings are commonly used for wear-resistant and load-bearing components. In oil and gas applications, cast steel components are selected for their ability to withstand pressure, temperature variations, and harsh operating environments. Power generation and energy industries also rely on steel castings for critical equipment requiring high reliability.
Because steel casting allows manufacturers to create large, complex, and customized components, it remains an important manufacturing solution for industries requiring performance beyond standard fabricated parts.
